Product Features

🔥

Thermal insulation, consumption reduction and energy saving

Compared with traditional exterior wall panels, metal carved panels have better heat preservation and heat insulation functions.

đź›

Convenient installation

The installation method of metal carving board is simple, not affected by the season and weather.

🌱

Implement energy saving and environmental protection concepts

The metal carved board has stable chemical and physical structure, no pollution, and long service life.

🔊

Sound insulation and noise reduction, quiet and comfortable

The metal carved board is a closed bubble structure, which has a significant sound insulation effect.

đź’§

Waterproof and moisture–proof performance is stable

The metal carved board is processed by special process, with good waterproof performance and high material stability.

đź§±

Light texture and obvious shockproof effect

The metal carved board has been treated with a special process and has strong shock and crack resistance characteristics.

🔥

Flame retardant properties

The core material has been specially treated to have good fire and flame retardant properties.

🎨

Many patterns and colorful

There are many kinds of metal carving boards, you can choose from more than 100 different carving patterns and background colors.

Product Description

Metal carving boards are made of environmentally friendly materials (inner polyurethane layer is the same material as refrigerator and air conditioning insulation layer). They are non–toxic, odorless and pollution–free. They provide green protection and decoration for buildings. The surface is a high quality color relief veneer metal plate with special layer treatment, the middle layer is a rigid high density polyurethane foam thermal insulation layer with flame retardant treatment, and the bottom layer is an aluminium foil protective layer with thermal insulation, thermal insulation and moisture–proof function. Because the wallboard itself has the characteristics of thermal insulation, waterproof and flame retardant, light anti–seismic, convenient construction, sound insulation and noise reduction, green environmental protection, beautiful and durable, and because of its simple and practical plate assembly method, not limited by seasonal environment, so the installation and use is very safe and convenient, suitable for all seasons. This innovative exterior wall thermal insulation decoration board highlights its advantages.

This material has decoration and heat preservation function. By embossing and baking aluminized zinc plate, it can form more than 100 kinds of art decoration effects, such as red wood grain, brick grain, bark grain, cultural stone, marble, mosaic, etc. Metal carving board effectively solves the problem of single function of traditional material and synchronizes the decoration of external wall with heat insulation. In summer, the indoor temperature is 3–5 degrees lower than that of ordinary buildings, and it only takes about 5–8 years for the houses decorated with metal carved boards to recover the cost of materials in terms of air conditioning and cooling.

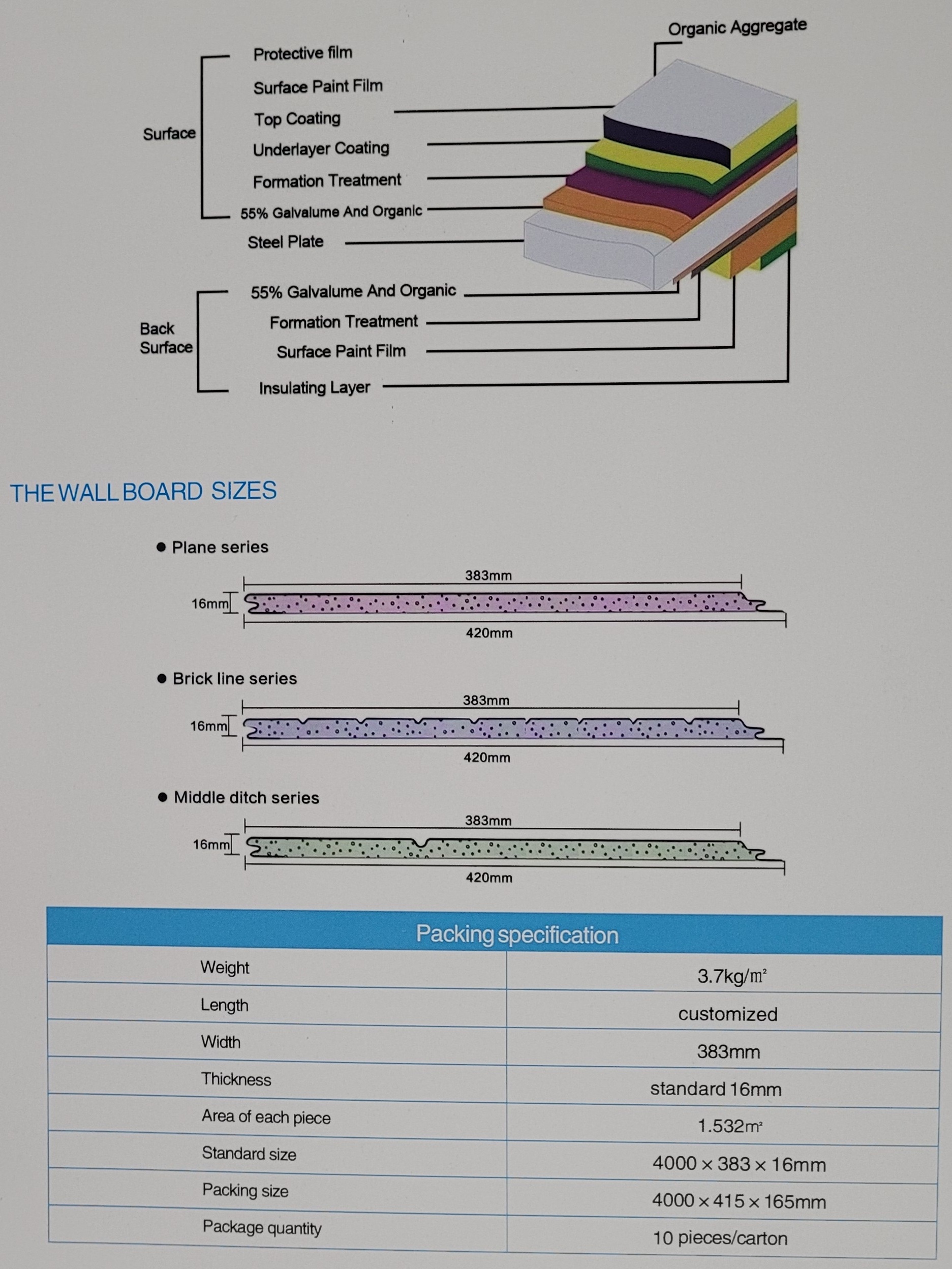

Schematic Diagram of Surface Material Structure

Schematic and wallboard sizes brochure page

Surface: Protective film, Surface Paint Film, Top Coating, Underlayer Coating, Formation Treatment, 55% Galvalume And Organic, Steel Plate.

Back Surface: 55% Galvalume And Organic, Formation Treatment, Surface Paint Film, Insulating Layer.

Organic Aggregate is applied on the outermost layer as shown in the schematic.

The Wall Board Sizes

â—Ź Plane series
Thickness: 16 mm  |  Width: 383 mm  |  Effective length: 420 mm
â—Ź Brick line series
Thickness: 16 mm  |  Width: 383 mm  |  Effective length: 420 mm
â—Ź Middle ditch series
Thickness: 16 mm  |  Width: 383 mm  |  Effective length: 420 mm
Packing specification
Weight 3.7 kg/m²
Length customized
Width 383 mm
Thickness standard 16 mm
Area of each piece 1.532 m²
Standard size 4000 Ă— 383 Ă— 16 mm
Packing size 4000 Ă— 415 Ă— 165 mm
Package quantity 10 pieces/carton

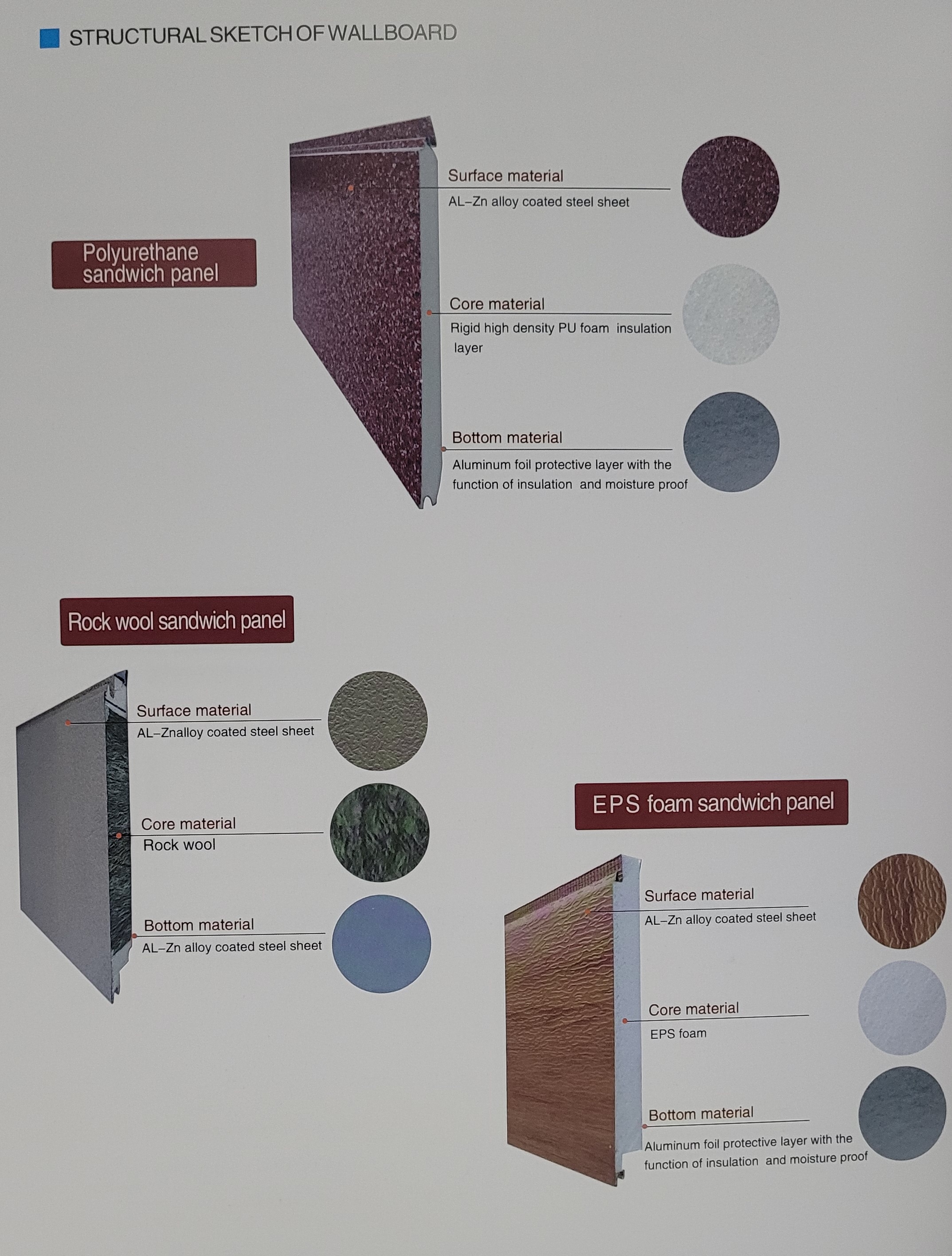

Structural Sketch of Wallboard

Structural sketch of wallboard brochure page
Polyurethane sandwich panel
  • Surface material: AL–Zn alloy coated steel sheet
  • Core material: Rigid high density PU foam insulation layer
  • Bottom material: Aluminum foil protective layer with the function of insulation and moisture proof
Rock wool sandwich panel
  • Surface material: AL–Zn alloy coated steel sheet
  • Core material: Rock wool
  • Bottom material: AL–Zn alloy coated steel sheet
EPS foam sandwich panel
  • Surface material: AL–Zn alloy coated steel sheet
  • Core material: EPS foam
  • Bottom material: Aluminum foil protective layer with the function of insulation and moisture proof
